| Landing Legs |
|
|
|
|
|
|
|
|
BODY HEIGHT RETRACTED ....... 775MM EXTENDED ....... 1080MM TRAVEL ....... 305MM ASSEMBLY PART NO. 8169-00002 |
SUPPORT HEIGHT RETRACTED ....... 419MM EXTENDED ....... 749MM TRAVEL ....... 330MM ASSEMBLY PART NO. 8169-00003 |
OVERALL HEIGHT RETRACTED ....... 616MM EXTENDED ....... 889MM TRAVEL ....... 273MM ASSEMBLY PART NO. 8169-00010 |
|
|
||
|
|
||
|

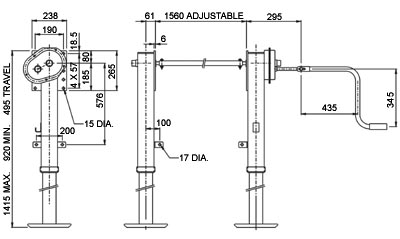

OVERALL HEIGHT RETRACTED ....... 920MM EXTENDED ....... 1415MM TRAVEL ....... 495MM ASSEMBLY PART NO. 8169-00021 |
||
|
|
